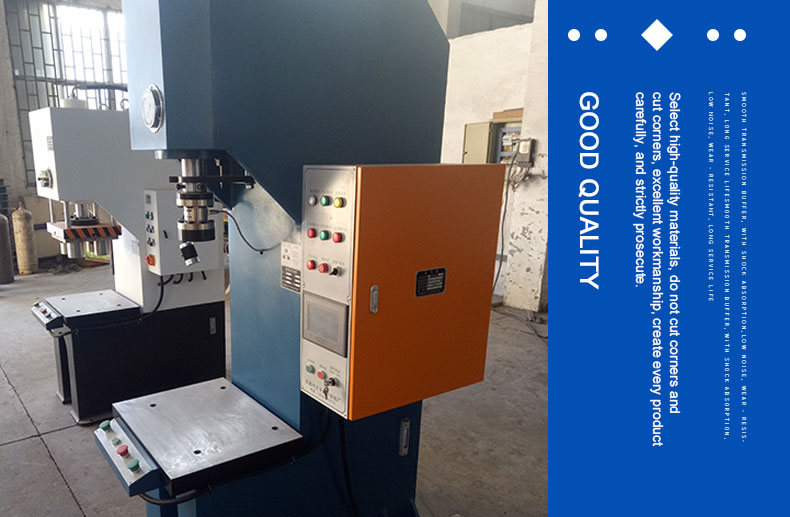

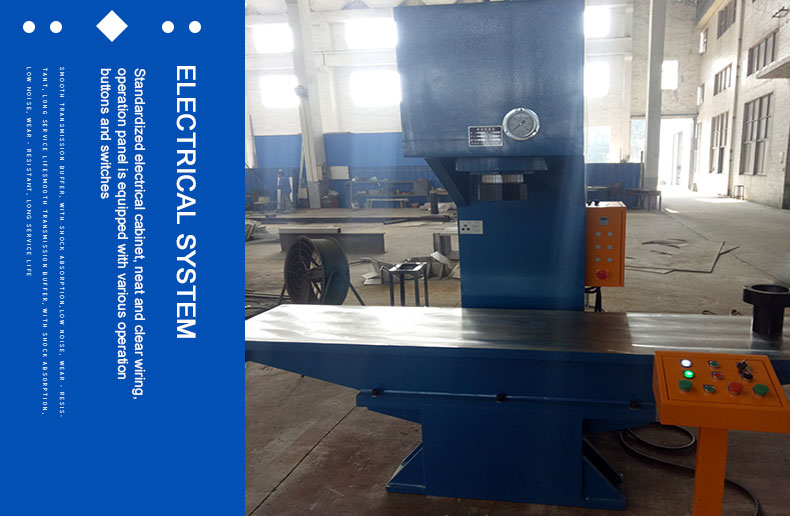

Yw41 series press mounting machine series

本系列液压校直机主要用于地轴类和套类零件进行校正、压装、有关零件的成型，落料。压印等工艺用途。
其结构床身采用钢板焊接，换向灵敏度高，无触点及空行程，精度可校正到三丝，特别适用于纺织业的罗拉、汽车、摩托车的轴、连杆及各种规格的工字钢、槽钢、圆材、角钢的校正，而压力，行程皆可调节，控制，操作简便。

Model		Unit	4A	6.3A	10A	16A	25A	40A	63A	100A	160A
Nominal force		KN	40	63	100	160	250	400	630	1000	1600
Max working pressure of liquid		Mpa	5.6	5.1	8.1	13	20.3	23	16.5	26.3	25.9
Max distance between lower plane of slide block and working table		mm	80	80	130	130	130	200	300	300	300
Shaft Head Speed	Down	mm/s	35	40	40	48	48	33	39	40	24
Shaft Head Speed	Return	mm/s	58	50	50	115	115	94	84	85	65
Max stroke of piston rod		mm	80	80	120	120	120	250	500	500	500
Deep throat		mm	120	120	140	140	140	240	250	300	300
Table size	Front and hinder	mm	300	300	350	350	350	460	500	500	500
Table size	Left and right	mm	1000	1000	1600	1600	1600	1600	2000	2000	2000
Platform height		mm	800	800	800	800	900	830	950	950	950
Motor power		kw	2.2	3	4	5.5	5.5	5.5	5.5	11	11
Dimensions of machine tool	Front and hinder	mm	1000	1000	900	920	920	1130	1350	1460	2350
	Left and right	mm	1000	1000	1600	1700	1600	1150	2000	2000	2000
	Height on the ground	mm	1500	1500	1665	1600	1754	2610	2000	2180	3128
Total Weight (approx)		t	0.8	1.1	1.3	2	2.5	3	3.5	5	7
