Performance characteristics

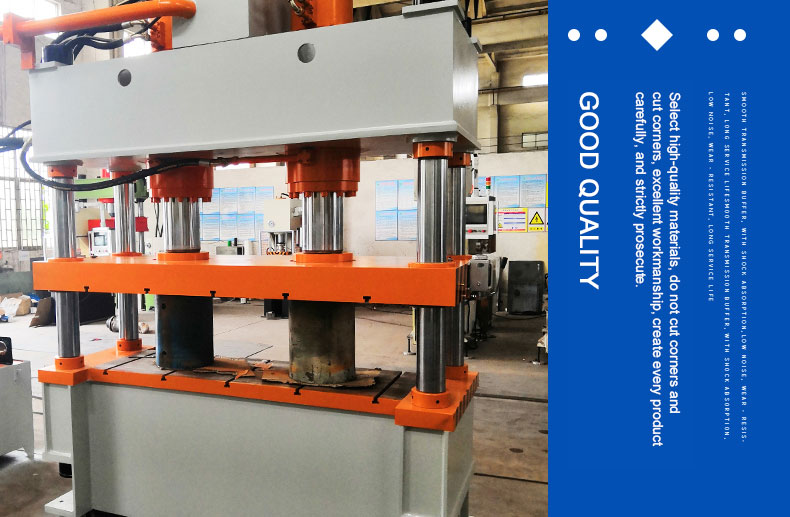

★ computer optimized structure design, the four-column structure is simple, economical and practical, and the frame structure has good rigidity, high precision and strong ability to resist bias load.

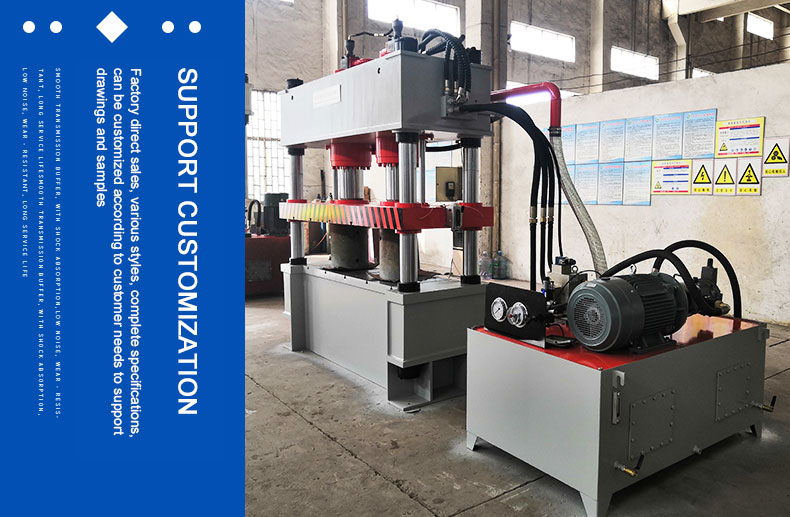

★ hydraulic control adopts plug-in basic system, which has reliable operation, long service life and small hydraulic impact, which reduces continuous pipeline and leakage point.

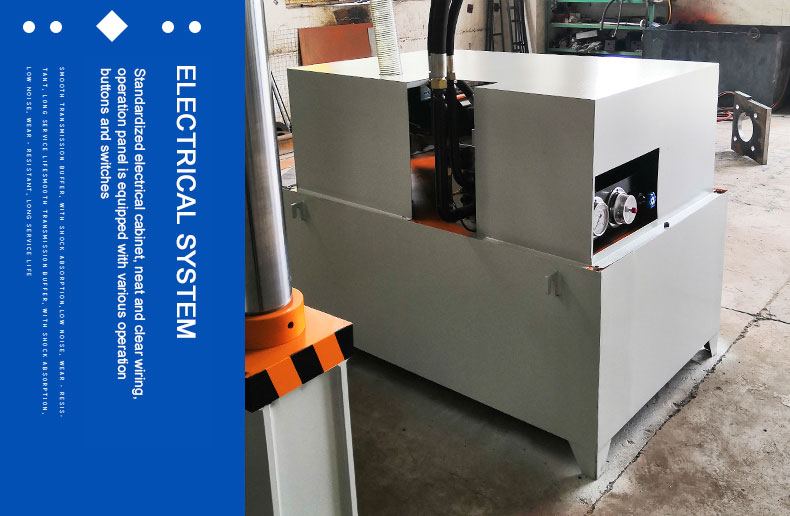

★ controlled by imported PLc has compact structure, sensitive, reliable and flexible work, reliable operation and convenient maintenance.
★ through the operation panel selection can not only achieve fixed-range, fixed-pressure two forming process, but also can achieve pad, padless, out of three process work cycle.

Areas of application
Suitable for drawing, bending, forming, blanking, flanging and other stamping processes, especially in the following fields:
★ automotive parts: body coverings, brake pads, fuel tanks, chassis, axle housing, bumper;
★ household appliances: washing machine parts, electric cooker parts: television parts, refrigerator parts;
★ kitchen utensils: sink, kettle, stainless steel utensils, other various containers;
★ others: tractors, motorcycles, aerospace, aviation.

Project		单位	YH28-25	YH-28-80/120	YH28-100/180	YH28-150/120	YH28-100/350	YH28-200/315
Nominal force		KN	250	1200	1800	2000	3500	3150
Tensile force		KN		800	1000	1500	1000	2000
Compressing forces		KN			800	500	2500	3150
Hydraulic cushion force		KN		400	315	500	630	630
Feeding force		KN		50	315
Stretch slider stroke		mm	220	410	710	570	750	800
Edge pressing slider stroke		mm			350		600	350
Hydraulic pad stroke		mm		180		250	300	300
Stretch slider size	Left and right	mm	400	500	630	790	1200	840
	Front and hinder	mm	420	560	630	920	1200	1200
Dimensions of edge slider	Left and right	mm			630		1200	1200
	Front and hinder	mm			630		1200	1200
Hydraulic pad size	Left and right	mm		510
	Front and hinder	mm		450
Table size	Left and right	mm	400	500	630	790	1200	1200
	Front and hinder	mm	420	600	630	920	1200	1200
Stretch slider opening height		mm		660	1460	870	1600	1500
Opening height of edge-pressing slider		mm	100	80	＞80	160	52	＞100
Stretch slider speed	Airline downlink	mm/s		20	40-10	25-14	17-5	10
	Work	mm/s	50	120	130/200	180	100	100
	Return	mm/s			100		100	＞100
Edge-pressing slider speed	Airline downlink	mm/s					13-5
	Work	mm/s			50		88	100
	Return	mm/s
Dimensions	Left and right	mm	1860	2040	2300		4400	4150
	Front and hinder	mm	750	720	900		2500	1300
	Height	mm	1640	2860			地上4242 地下1100
Motor power		KW	4	1815	22			44
